Racing by the Numbers -- The Mitchell Analysis of the Spec Racer Chassis |
| William C. Mitchell created the racing standard chassis geometry analysis software, “Racing by the Numbers”. I own a copy. This section includes two things: 1) The full text outputs of the Mitchell analysis of both the front and rear suspensions of the Spec Racer (using the 1997 setup of the “10” car as the basis). 2) Front and rear camber curves versus ride and roll. This should give you a lot to study before your first race of 1999. |
| The Text Analysis |
| Front...click on the following link to download a Microsoft Word document containing the analysis for the front suspension. SRF_Front_Suspension.doc |
| Rear...click on the following link to download a Microsoft Word document containing the analysis for the rear suspension. SRF_Rear_Suspension.doc |
| Camber Curve Graphs |

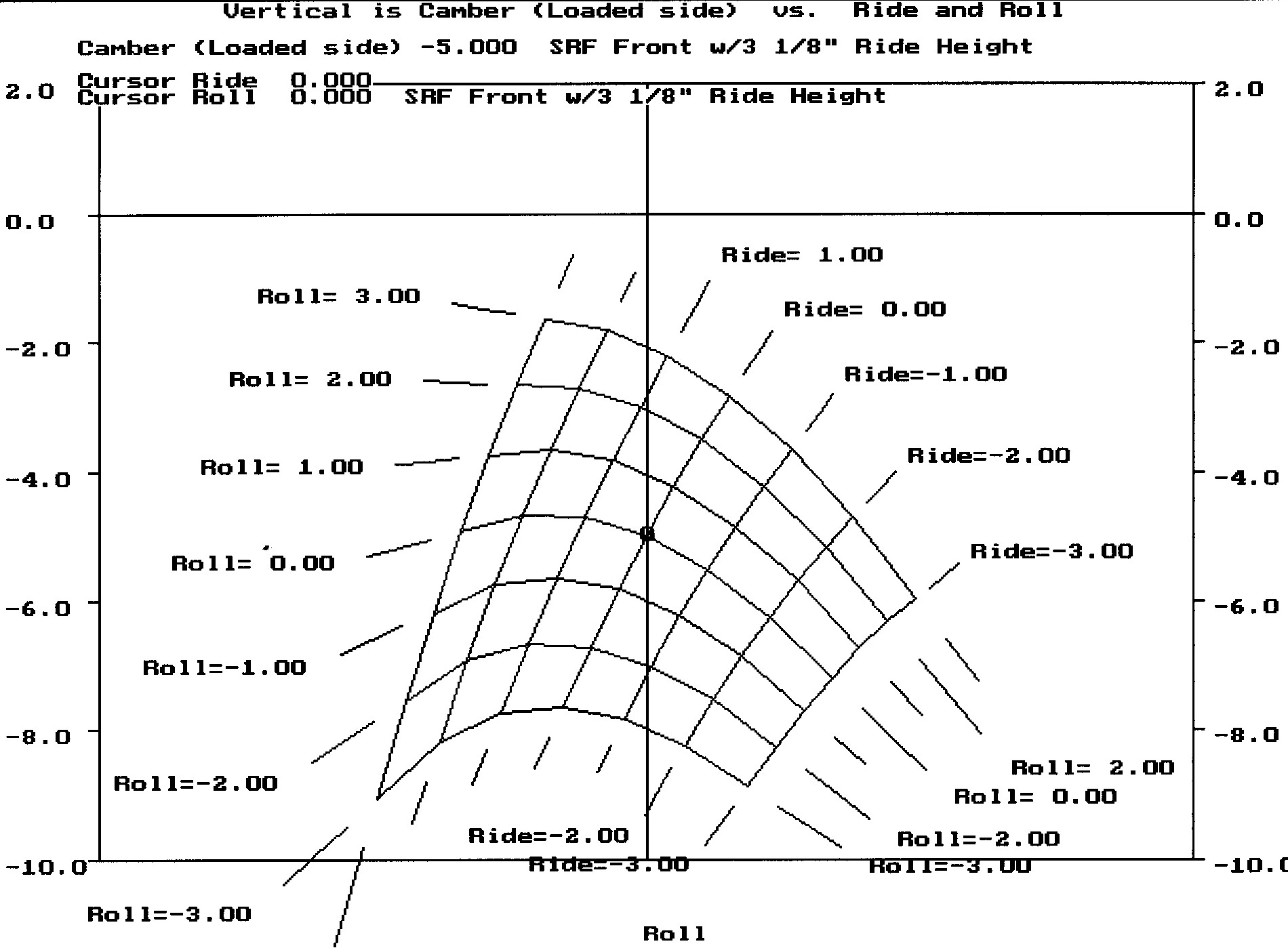

 Front...Click
on the graph on the right to see a full size version. To print this drawing, set
your “Page Setup” to “Landscape” orientation so the whole page
prints. Press the “Back” button on your browser to return to this page.
|
| Rev. 2/8/99 |
