Frame Drawings

Background
Here are some of the drawings I have for the Spec Racer frame.  The measurements were taken from chassis # 420...which was one of the last RJS cars built.  Over time, I’ll post my whole collection.

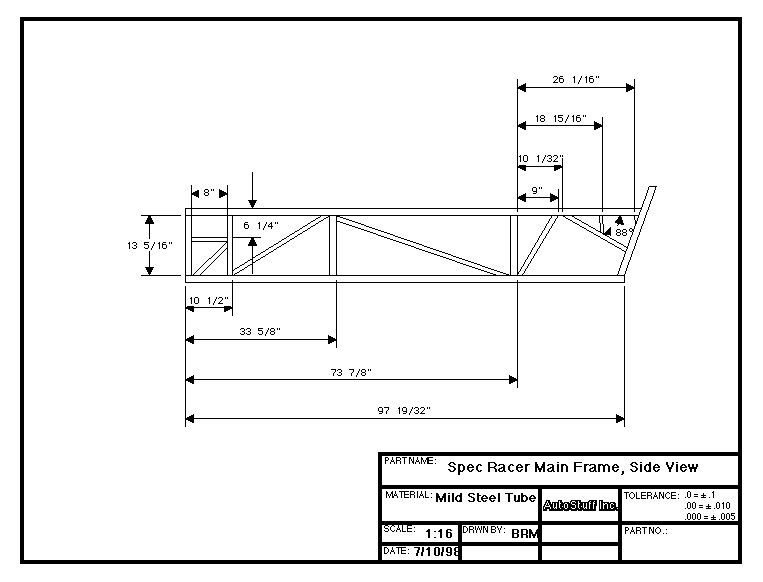

Frame Side View
Frame_Side_small.gif (5579 bytes)Click on the drawing on the left to see a full size version.  To print this drawing, set your “Page Setup” to “Landscape” orientation so the whole page prints.  Press the “Back” button on your browser to return to this page.

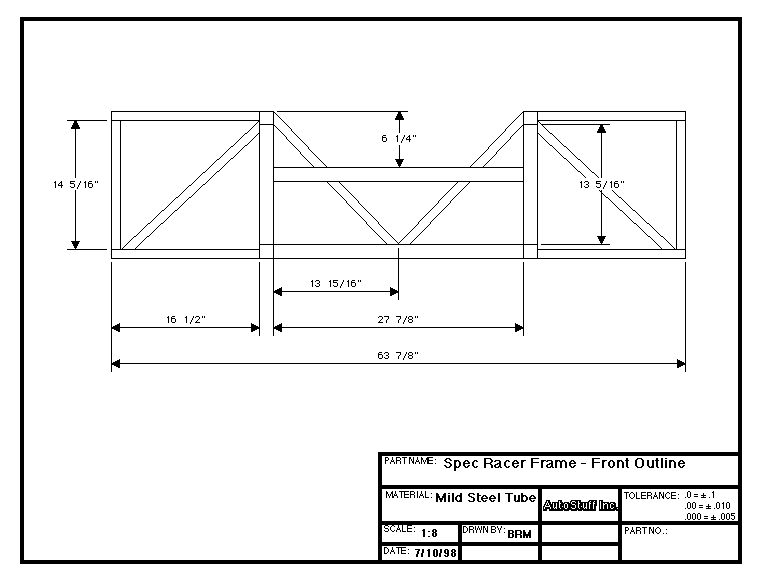

Frame Front Outline
Frame_Front_Outline_small.gif (5200 bytes)Click on the drawing on the left to see a full size version.  To print this drawing, set your “Page Setup” to “Landscape” orientation so the whole page prints.  Press the “Back” button on your browser to return to this page.

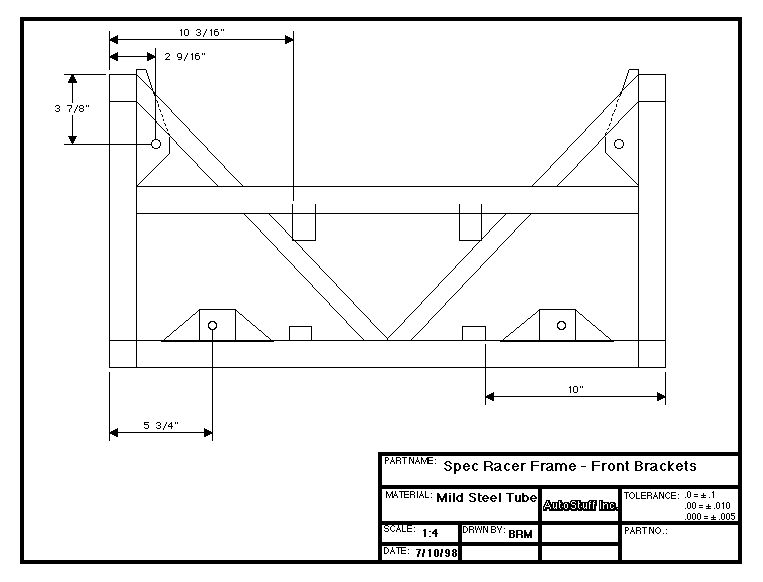

Frame Front Brackets
Front_Brackets_small.gif (5408 bytes)Click on the drawing on the left to see a full size version.  To print this drawing, set your “Page Setup” to “Landscape” orientation so the whole page prints.  Press the “Back” button on your browser to return to this page.

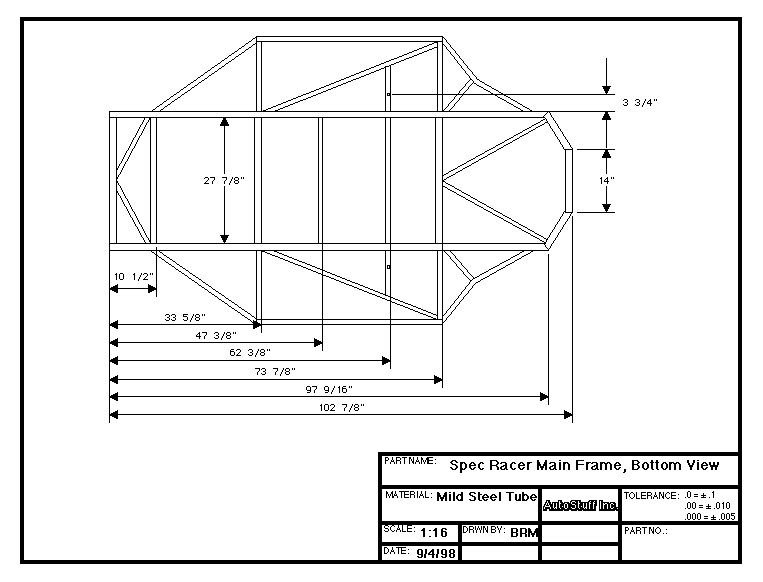

Frame Bottom Outline
Frame bottom_small.gif (4440 bytes)Click on the drawing on the left to see a full size version.  To print this drawing, set your “Page Setup” to “Landscape” orientation so the whole page prints.  Press the “Back” button on your browser to return to this page.

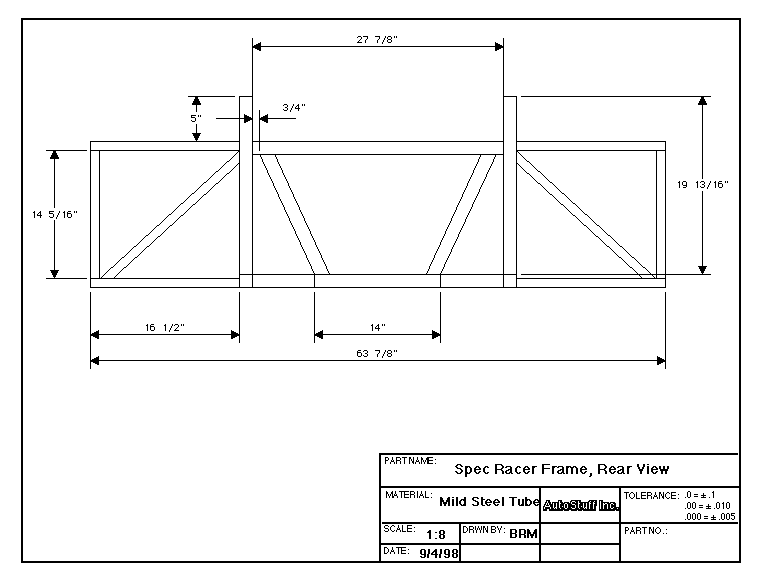

Frame Rear Outline
Frame_Front_Outline_small.gif (5200 bytes)Click on the drawing on the left to see a full size version.  To print this drawing, set your “Page Setup” to “Landscape” orientation so the whole page prints.  Press the “Back” button on your browser to return to this page.

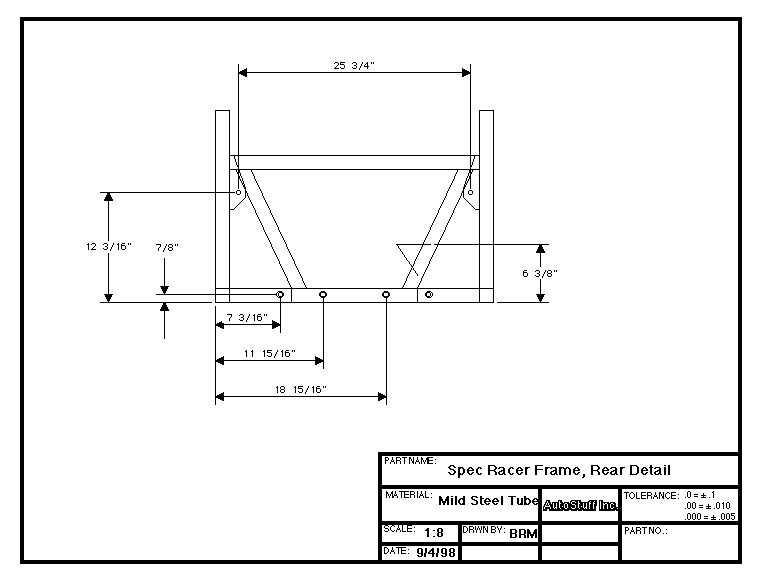

Frame Rear Detail
Frame reardet_small.gif (3432 bytes)Click on the drawing on the left to see a full size version.  To print this drawing, set your “Page Setup” to “Landscape” orientation so the whole page prints.  Press the “Back” button on your browser to return to this page.

Rev. 9/5/98

Feedback
I welcome your comments or ideas on this information.  Feel free to drop me a line via “Comments for the Bro’s”.

Barry
