SRF Wiring Diagrams and Information

Background
I didn’t really like the multi-page wiring diagrams that came with the assembly manual “Green Book”....so I re-drew them.  The first diagram below is the Ford portion of the wiring.  The second diagram is the the Renault portion.  I’ve also included two little Excel spreadsheets you can download.  One lists the SRF circuits and describes what type of signals appear on each circuit, the other is a table of current draws.
SRF Wiring Diagrams
There are two drawings below: 1) A “Ford” diagram, and 2) a “Renault” diagram.   Click on the “thumbnail” picture to get a full size drawing to print.   Note that the first drawing should be printed in “Portrait” orientation and the second drawing in “Landscape”.

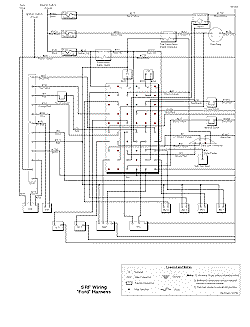

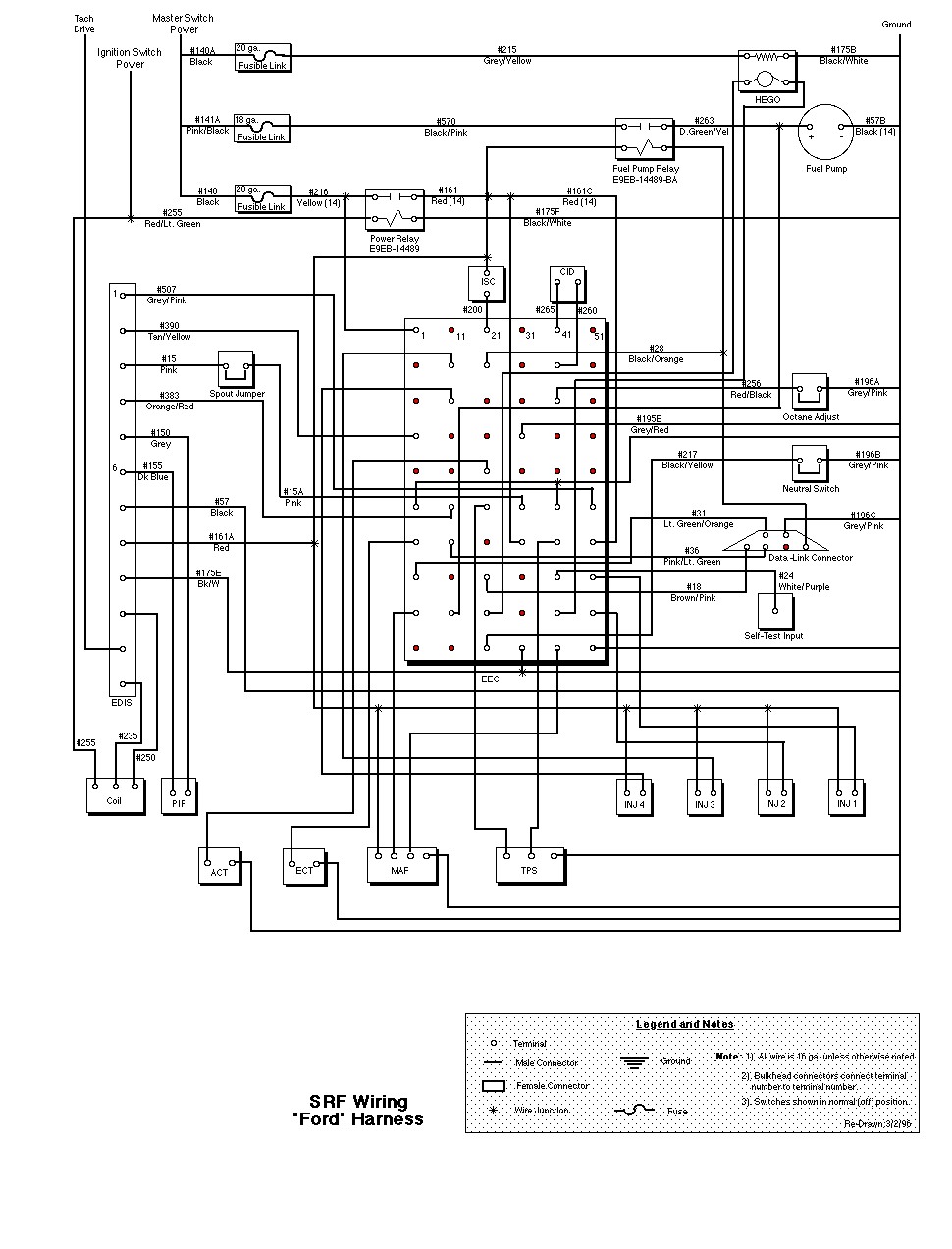

SRF_Ford_Wiring_small.gif (8973 bytes)Click on the drawing on the left to see a full size version.  To print this drawing, set your “Page Setup” to “Portrait” orientation so the whole page prints.  Press the “Back” button on your browser to return to this page.









SRF_Renault_Wiring_small.gif (4606 bytes)Click on the drawing on the left to see a full size version.  To print this drawing, set your “Page Setup” to “Landscape” orientation so the whole page prints.  Press the “Back” button on your browser to return to this page.

Misc. Electrical Info
Here we have two small Excel files you can download.
A table of info on the SRF electrical circuits:SRF_Wiring.xls
A table of current draw of the SRF:Current_Draw.xls

Rev. 8/1/98

Feedback
I welcome your comments or ideas on this information.  Feel free to drop me a line via “Comments for the Bro’s”.

Barry
